Product parameters
Contact type: S847 series quick-action switch
Photoelectric encoder model: OEC2
Protection level: IP00
Pollution degree: PD3
Overvoltage level: OV3
Life expectancy: 2 million mechanical life, 200,000 electrical life
Weight: about 9 kg
Handle operating force: can be customized according to user requirements
Connector connection: the connector can be executed according to user requirements
Contact wiring: PHCENIX terminal block (seat) 12/14/16
Photoelectric encoder input voltage: +15V...+35V DC
Applicable models: CRH380B
Features
◎ Encoder uses 9-bit photoelectric Gray encoder
◎ Double photoelectric encoder design

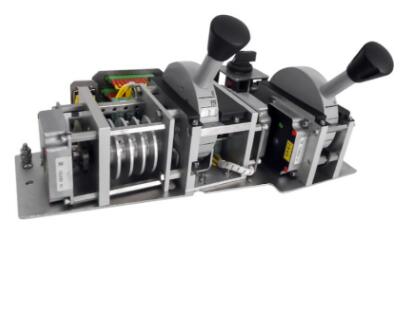

◎ Driver controller has three handles, traction handle, speed setting selection handle, direction handle
◎ traction area and infinite adjustment
◎ Designed with a warning device on the traction handle
◎ The speed handle is designed with a malfunctioning device, which can be pushed after rotating the handle counterclockwise.
