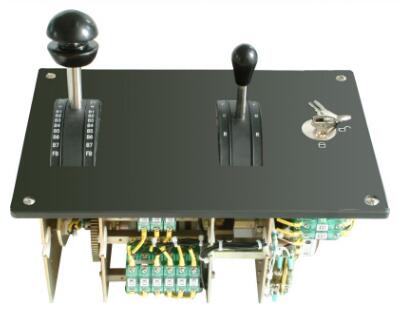

The S353 series of driver controllers have been used in large quantities in metro vehicles in many cities in China. The product technology is mature, compact and reliable. The panel has three operating mechanisms: a main handle, a direction selection handle, and a key lock. The rectangular structure design makes the driver controller more robust and durable.

Product parameters
Contact type: S826 series quick switch
Potentiometer: FSG PW70
Protection level: IP00
Pollution degree: PD3
Overvoltage level: OV3
Life expectancy: 2 million mechanical life, 200,000 electrical life
Weight: about 13Kg
Handle operating force: can be customized according to user requirements
Connector connection: the connector can be executed according to user requirements
Contact connection:  M3 screw
Applicable models: Shanghai Metro Line 1, Athens Metro
Applicable models: Beijing Subway, Shenyang Subway, Chongqing Subway, Wuhan Metro, etc.
Features
◎ Plate design, compact structure
◎ Main handle and direction selection handle position can be set according to customer needs
◎ Mechanical interlock between the main handle and the direction selection handle
◎ The main handle style can be round or T-shaped
◎ Independent mechanical lock on the panel
◎ With vigilance function
