Product parameters
Contact type: S826 series, S870 series quick-action switch
Potentiometer: FSG PW70
Protection level: IP00
Pollution degree: PD3
Overvoltage level: OV3
Life expectancy: 2 million mechanical life, 200,000 electrical life
Weight: about 12Kg
Handle operating force: can be customized according to user requirements
Connector connection: the connector can be executed according to user requirements
Contact connection: M3 screw
Applicable models: Shanghai Metro, Nangjing Metro
Features

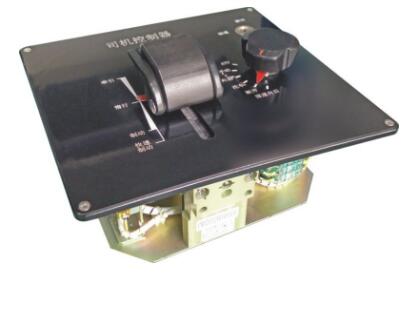

◎ There are three kinds of operable mechanisms on the panel: main handle, direction selection handle and mechanical lock.
◎ The main handle uses the flat push mode to switch the gear position
◎ The main handle is equipped with stepless and stepless speed regulation, multi-position area division, can be designed according to customer requirements
◎ Direction selection handle has multiple selection modes (including ATO mode)
◎ Mechanical interlock between control handle and reversing handle
◎ Independent mechanical lock on the panel。
