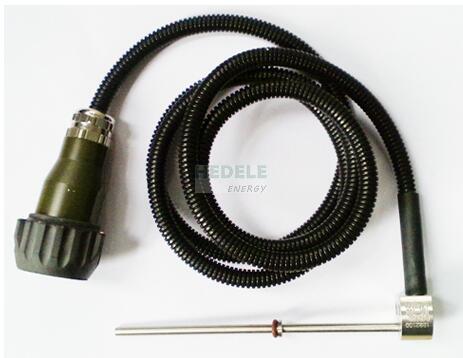

TLK-100K type motor temperature sensor
delivery time: 2-3 weeks
Temperature measuring element
Platinum resistance
Graduation number
Pt100
Temperature measurement range
-50°C~ 250°C
Tolerance class
DIN EN 60751 (±0.12Ω/0°C) Class B
Lead way
four-wire system
measure current
1mA
Insulation resistance
≥200MΩ@500VDC
Dielectric strength
AC500V/50Hz/60s
