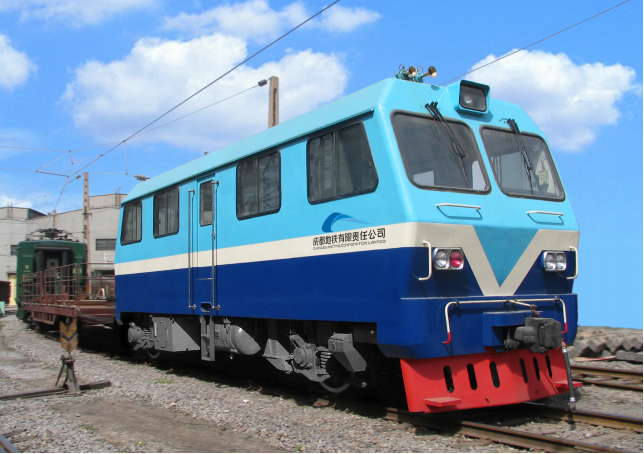

TY 290 heavy rail car is a small traction power vehicle, suitable for line construction, maintenance of traction operation and high-speed operation, and can also be used as personnel transportation, on-site inspection of traffic office vehicles. It can also be used for traction operation and shunting operation in large scale industrial and mining enterprises. The power transmission system adopts hydraulic transmission mode, which combines the advantages of hydraulic torque converter and mechanical transmission, with high efficiency and wide working range. It has the characteristics of smooth starting, high starting traction and simple operation. Vehicle dynamic performance meets the requirements of smooth and reliable operation at 115 km/h speed.
Main technical specifications:
Engine power 206kW
The maximum speed is 115 km/h
Gauge 1435mm
Wheel diameter 915mm
Axial array 1A - A1
Fixed distance 7200mm
Minimum pass radius 100m
Transmission mode hydraulic machine drive
Brake mode air brake + parking hand brake
The braking distance (straight line, initial braking speed of 80km/h = 400m)
Starting mode DC24V electric starting
+ST buffer for traction device 13 coupler
The distance between coupler center and rail surface is 880 + 10mm
Kerb weight 36t
Fuel tank volume 500L
Shape reference dimension (x * width * height) 13766 x 3120 x 4060mm
The radiation noise is less than 95dBA (GB13669-92 compliant)
