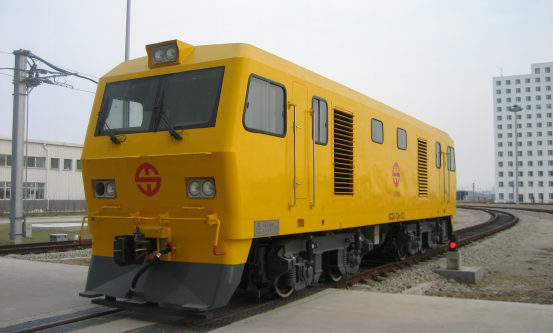

GCD-470 electric drive heavy rail car

Product overview
GCD-470 electric drive heavy rail car, suitable for railway construction and overhaul line transporting personnel and equipment, can be used for industrial departments and small shunting operation, parking can also provide high power AC power supply for railway rescue, engineering machinery. The rail car has been assigned to the Qinghai Tibet railway company, China Railway twelve Bureau, part of the railway Gongwu section. Since the opening of the Qinghai Tibet railway, the first GCD-470 heavy rail vehicle has been riding on the snow covered plateau all year round and withstood the ordeal of the harsh environment of the Qinghai Tibet plateau. The model won the three prize of science and technology award of China Railway society.
Main technical parameters
Nominal power 470kW
Top speed: 120km/h
Continuous speed: 22km/h
Starting tractive force: 112kN
Continuous traction: 60kN
Transmission mode: AC DC drive
Axle type: B0-2
Through the minimum curve: 125m
Braking mode: air brake + parking brake
Wheelbase: 2800mm
Center distance of bogie: 8790mm
Size: 16500 x 3105 x 4400mm
Kerb weight: 60t
Power supply capability: AC400V 50Hz 160kVA
