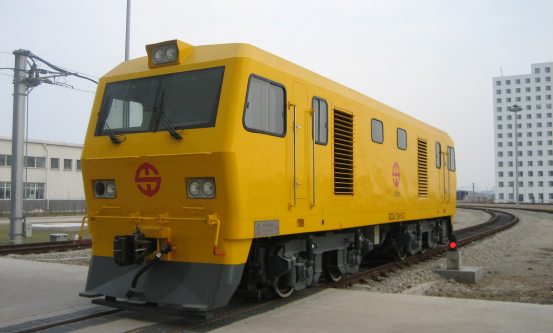

GCD-470A city rail transit for shunting locomotive shunting in Metro Depot in line, line on the line, but also for the accident of the train traction, rescue equipment supplies and other non power rail vehicle traction operation. At the same time, it can provide high power three-phase AC power supply for construction machinery and accident rescue.
Main technical parameters
Nominal power 440kW
Top speed: 80km/h
Continuous speed: 10.5km/h
Starting tractive force: 131kN
Continuous traction: 110kN
Transmission mode: AC DC drive
Axle type: B-B
Axle load: 14T
Through the minimum curve: 65m
Braking mode: air brake + parking brake
Wheelbase: 2000mm
Center distance of bogie: 6180mm
Size: 12500 x 2605 x 3600mm
Kerb weight: 52T
