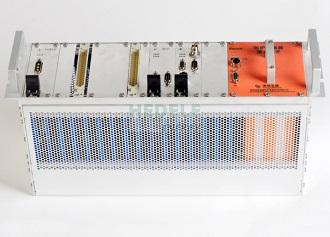

DRS01 Vehicle-mounted judicial recording device
delinery time:2 weeks
product description
◎Record the information received by the communication interface and the status information monitored by itself
◎Provide large-capacity storage space
◎Protection performance meets relevant requirements of IEC 62625
◎Judicial recorder for locomotives and vehicles
Environmental characteristics
◎Relative humidity: 2500m
◎Working temperature: -40℃～+70℃
◎Vibration and shock: meet the requirements of GB/T 21563-2008 Class B class
◎Working voltage: DC 77V～137.5V (nominal voltage DC 110V)
technical parameter
◎Storage capacity: ≥2GB
◎Digital input: 16 channels
◎Communication interface
▶MVB communication 1 channel.
▶Profibus communication 1 channel.
▶Ethernet communication 2 channels, the communication rate is 100Mbit/s.
▶USB communication 1 channel, in line with USB2.0 standard.
▶ RS232 communication 2 channels.
▶RS485 communication 4 channels.
◎Digital input: 16 channels (no output under any conditions), input voltage range: 16.8 ~ 137.5 V DC (14 ~ 154VDC within 1 second)
◎Dielectric strength (between all wires and shell): AC1220V[50Hz 60s]
◎Insulation resistance (between all wires and shell): ≥20MΩ (500V megohmmeter)
◎Electromagnetic Compatibility Meet the relevant requirements in GB/T 24338.4-2009
