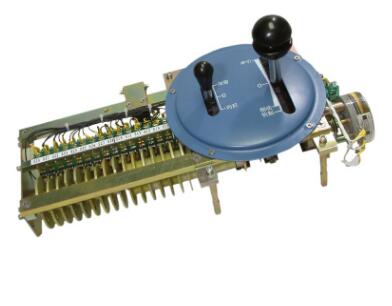

The S355D series of driver controllers are now widely used in metro vehicles in major cities in China. The product is compact in structure, light in weight, small in size, high in reliability, long in life and low in maintenance.
Product parameters
Contact type: S826 series quick switch
Potentiometer: FSG PW70
Protection level: IP00
Pollution degree: PD3
Overvoltage level: OV3
Life expectancy: 2 million mechanical life, 200,000 electrical life
Weight: about 12Kg
Handle operating force: can be customized according to user requirements
Connector connection: the connector can be executed according to user requirements
Contact connection: M3 screw
Applicable models: Guangzhou Metro, Shenzhen Metro, Shanghai Metro, etc.
Features
◎ The panel is disc-shaped, which saves space.
◎ There are three kinds of operating mechanisms: control handle, reversing handle and mechanical lock on the panel.
◎ The control handle and the reversing handle can be set according to customer requirements.
◎ Mechanical interlock between control handle and reversing handle
◎ Independent mechanical lock design
◎ The cam assembly is arranged in a horizontal arrangement to reduce the height of the driver controller
