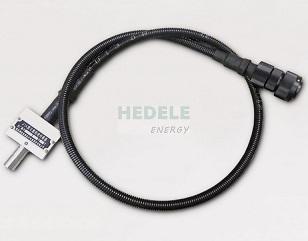

J-1A Magnetoelectric Speed Sensor
delivery time:2 weeks
product description
◎Speed sensor based on the principle of electromagnetic induction
◎The frequency range of the output signal is 10～10000Hz
Environmental characteristics
◎Altitude: ≤2500m
◎Relative humidity: ≤95% (the monthly average minimum temperature is 25℃)
◎Working temperature: -40℃～+100℃
◎Vibration and shock: meet the requirements of three types of axle installation in GB/T21563-2008
◎Protection level: IP68
technical parameter
◎Frequency range of output signal: 10～10000Hz
◎Working air gap: 0.3mm～2.0mm (standard air gap 1.0mm)
◎Number of output channels: 1
◎Output waveform: approximate sine wave
◎Dielectric strength (between the shell and any non-shell pin): AC1500V[50Hz 60s]
◎Insulation resistance (between the shell and any non-shell pin): ≥50MΩ (500V megohmmeter)
